VS205
VS205

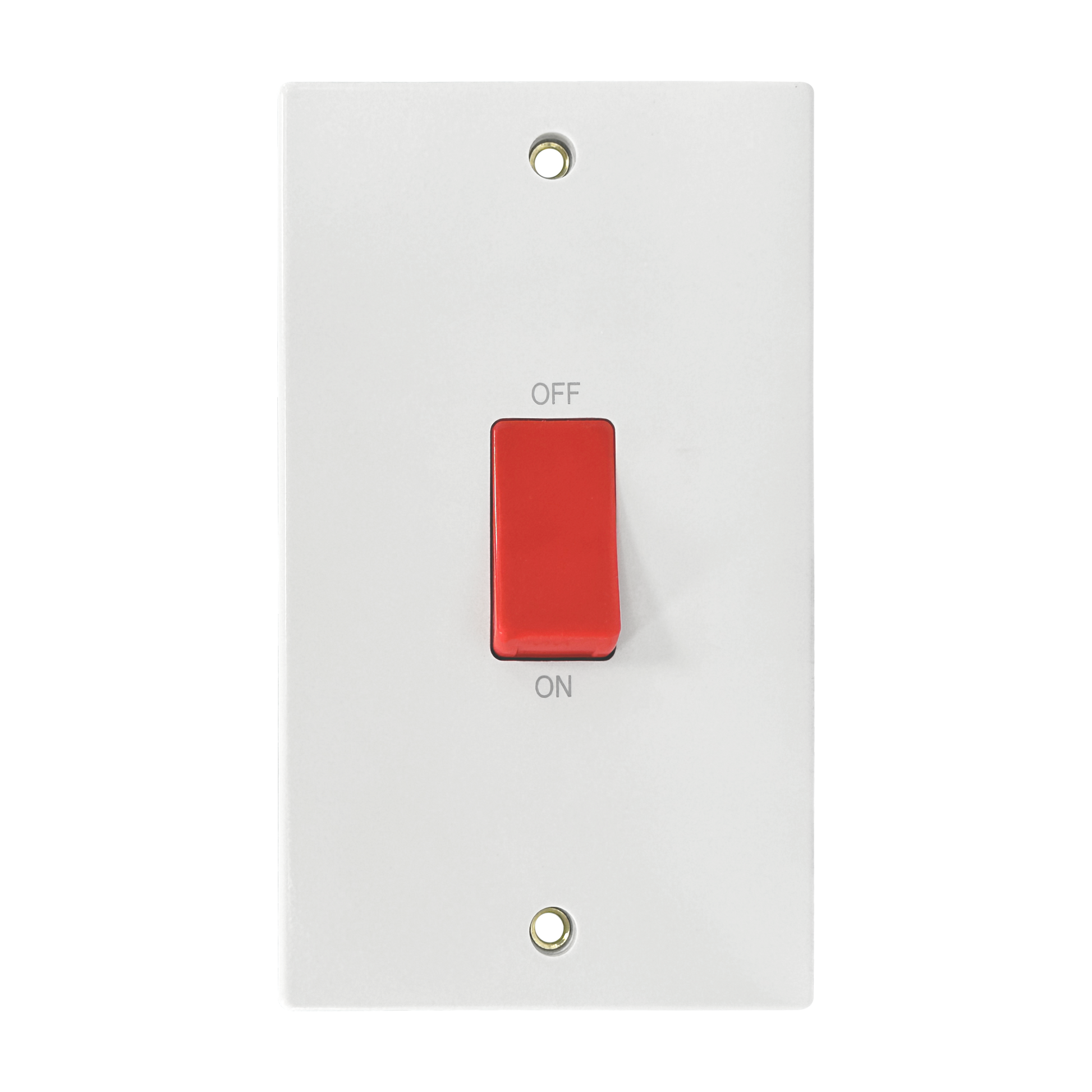

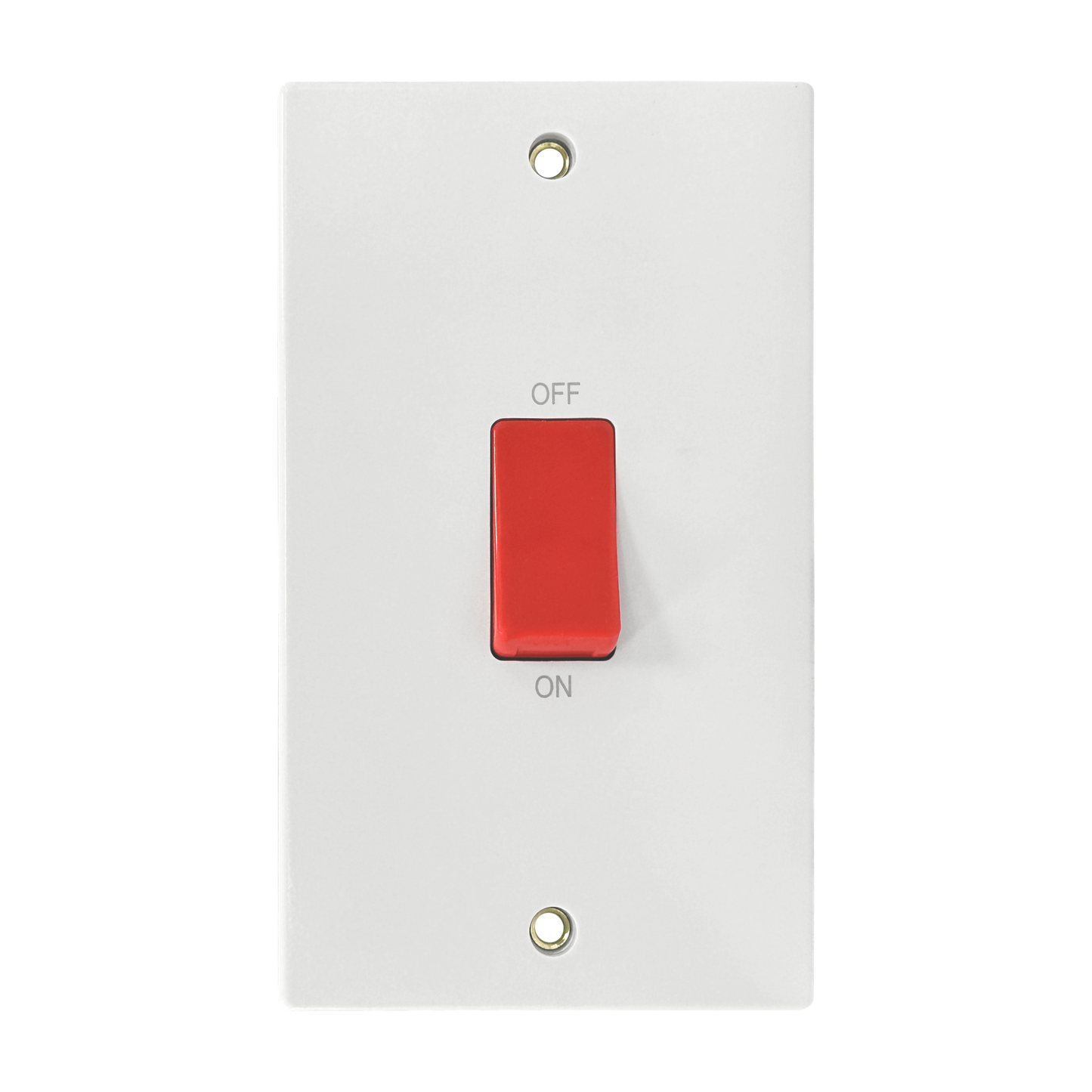

2G 45A DP Switch Squared Edge
- 2G
- 45A
- Double Pole
- Square Edge
- Certified to BS EN 60669
| Finish | White |
| Minimum Mounting Depth | 25mm |
| Dimensions | Height: 146mm, Width: 86mm, Plate Thickness: 10mm |
| Input Voltage | Mains 250V a.c. |
| Maximum Load | 45A |
| Terminal Capacity | 3 x 6mm² or 1 x 10mm² or 1 x 16mm² |
| IP Rating | IP 20 |
| Warranty | 25 years |
